Services
Our Deliverables
Our focus is delivering our Clients with innovative solutions to:
- Increase well production
- Reduce operating expense
- Minimize contaminated waste
- Build a smart system
- Provide safety products
Adding to our products, we are aligned to provide the following services line:

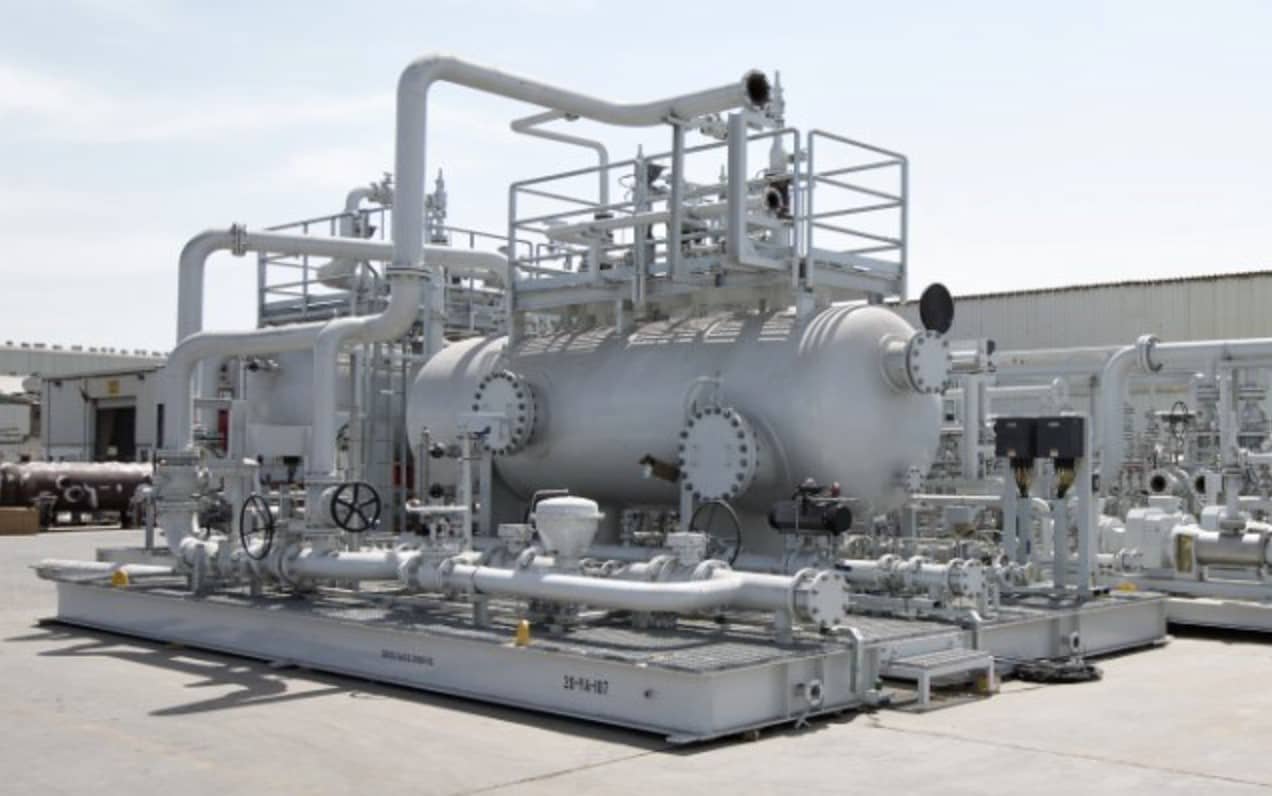

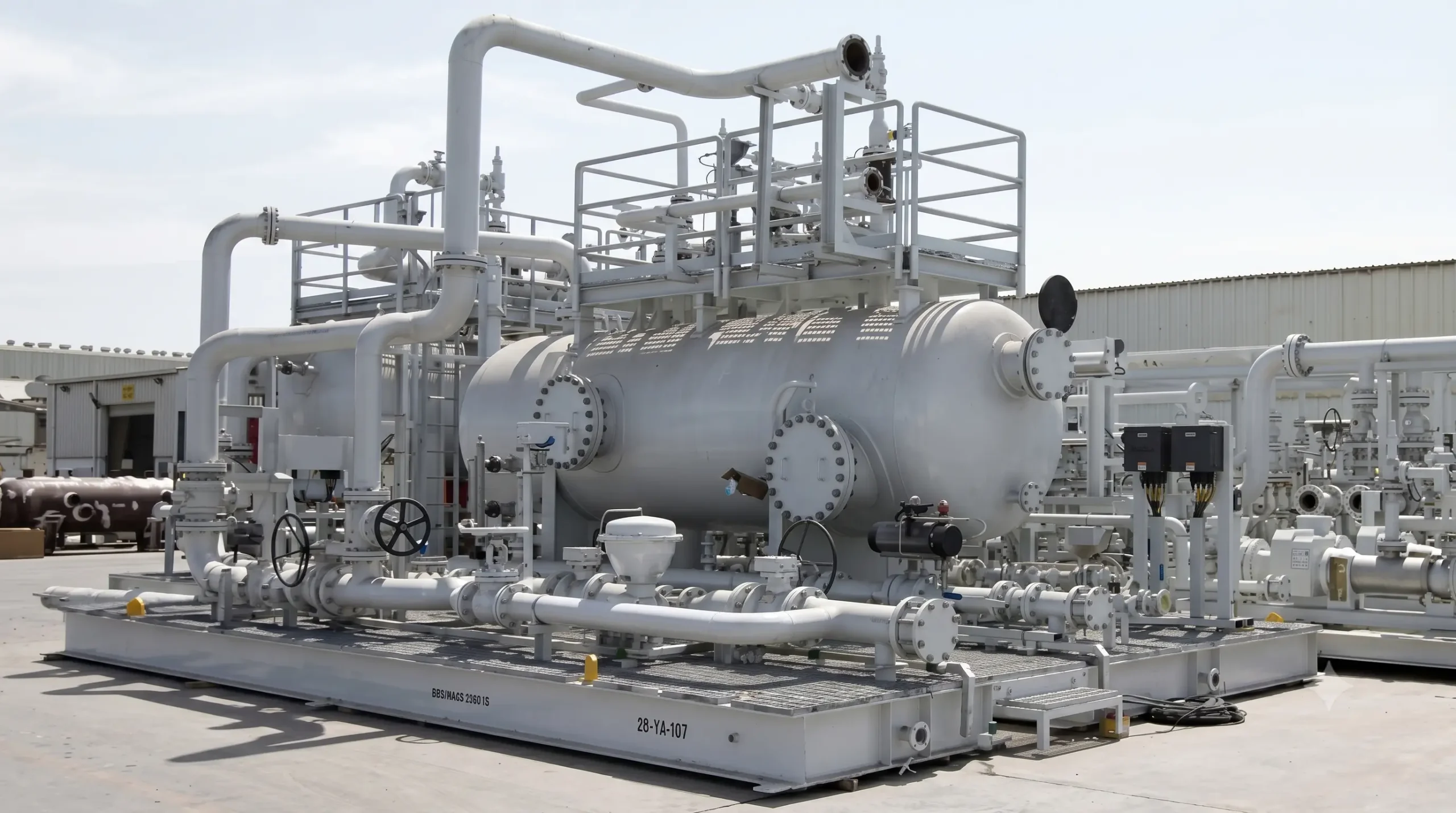

Early Production Facility (EPF)
by Our Affiliate PT Proteknik Indonesia
Our Early Production Facilities (EPF) approach:
- Fast installation on skid,
- Reliable with high safety standard, and
- Cost effective.
Our EPF solutions include:
- Two- and three-phase separation
- Gas sweetening packages
- Gas dehydration packages
- Dew point control units
- Oil dehydration, desalting and heating
- Produced water treatment packages
- Sand handling
- Fuel gas processing
- Flare systems
- Fire and gas utilities
- Power generation
We enable you to:
- Ensure oil is delivered early
- Appraise reservoir performance before installing permanent facilities with real-time production data
- Benefit from a fast turnkey operation, including well site equipment, utilities, control rooms, civil works, plant commissioning and long-term operation

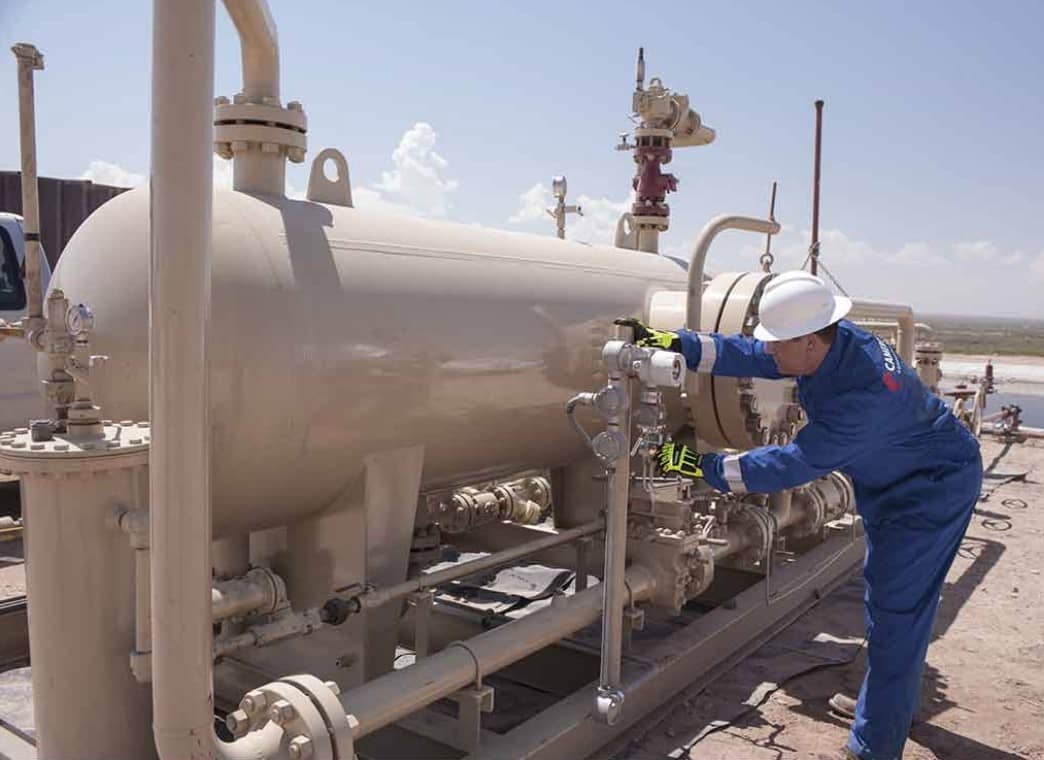

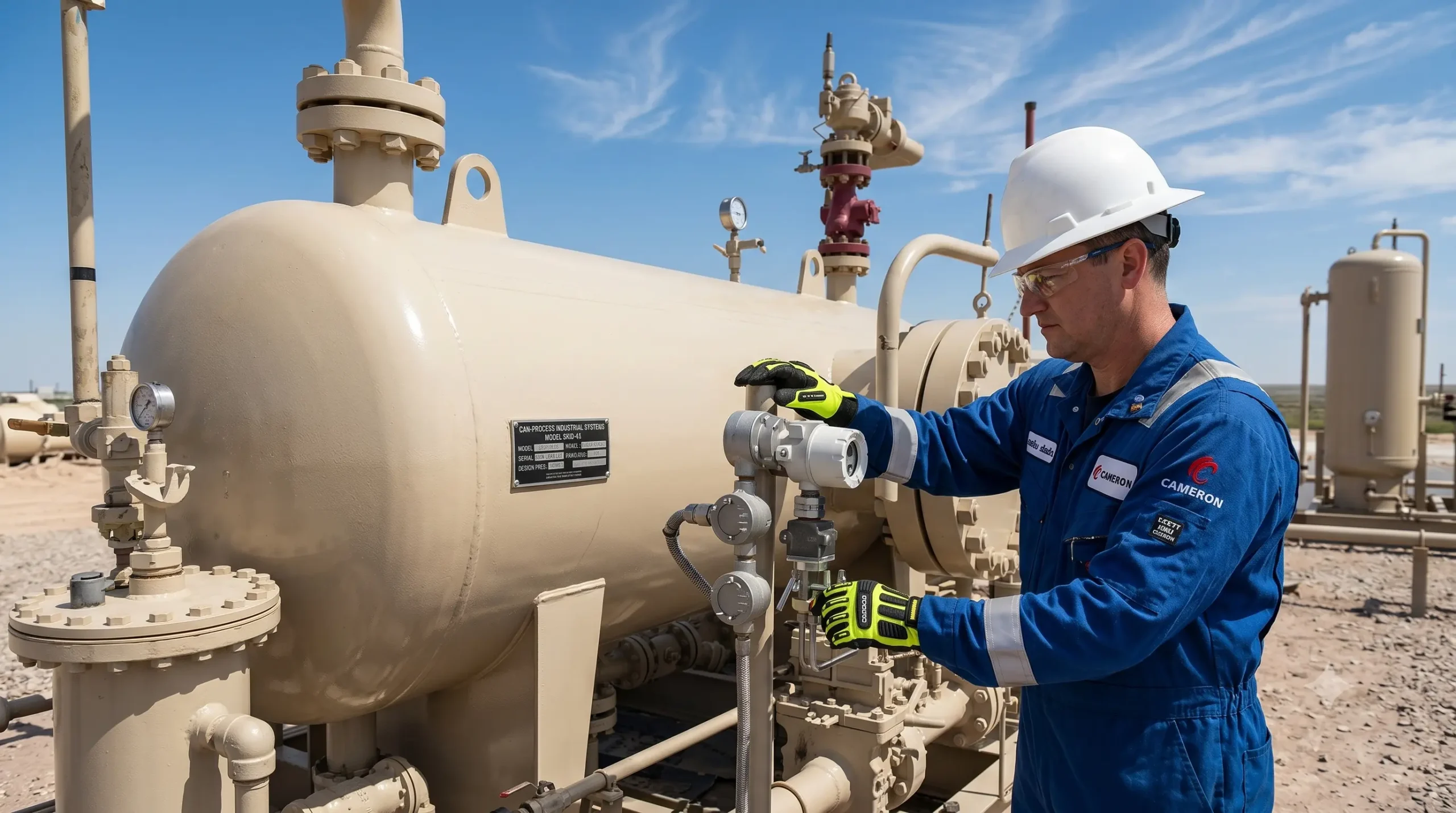

Well (Production) Testing
by Our Affiliate PT Proteknik Indonesia
Accurate data to inform your decisions
Accurate and reliable production data and fluid property measurements is the goal of well (production) testing.
Designs and operational plans include: multi-well pad configurations.
Production testing and measurement services include:
- Iinitial production well testing,
- Multiphase well testing and separation: oil, water, and gas,
- Extended well testing on produced well.

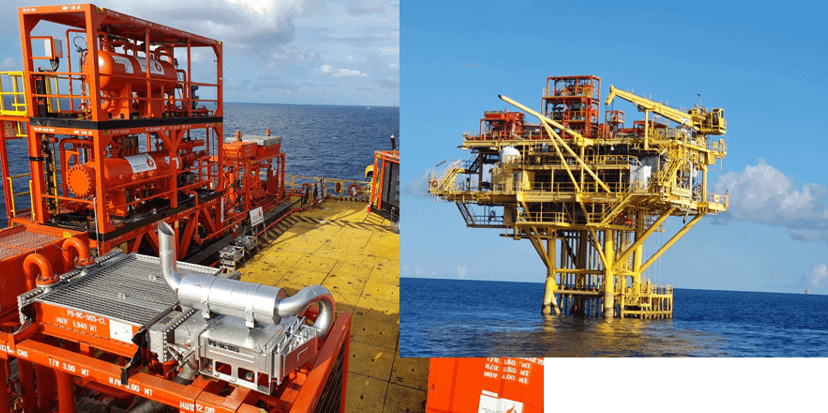

Well Unloading or Low-Pressure System
by Our Affiliate PT Proteknik Indonesia
Recovering more from existing non-producing Wells.
Well Unloading System is deployed to recover production from non-producing wells, typically WHP is as low as 20psi (or higher), in order to improve field economics.
System allows production from a number of wells that are unable to produce due to facilities back pressure.
Key success factors are in the integrated efforts between Company’s Reservoir, Production, Facility Engineers, included Service provider.
- Two- and three-phase separation
- Gas sweetening packages
- Gas dehydration packages

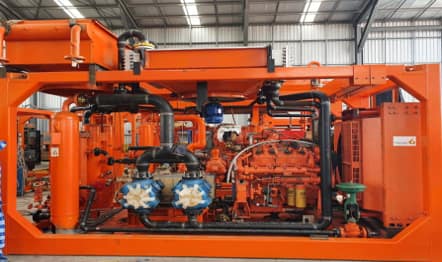

Gas Lift System
by Our Affiliate PT Proteknik Indonesia
Through our affiliates, Production Solutions Asia (PSA) specializes in the design, and commissioning of medium- and small-sized, custom built gas compressor, booster and blower packages for the Oil & Gas Operators within the Asia Pacific Region
PSA is flexible and not tied to any particular sub-vendors, compressor manufacturers or compressor technologies.
We can supply anything from minimum scope to complete turnkey solutions all designed, built and tested within our yard in Thailand, and Batam.
Solids Removal
by Our Affiliate PT Proteknik Indonesia

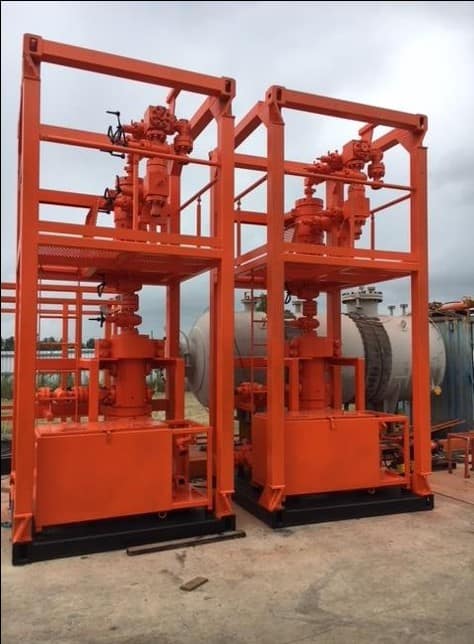

CYCLONE DE-SANDERS
- Multiple liner system offer greater flexibility,
- Cyclone liners can easily be replaced to accommodate for lower flows,
- High efficiency design and online turndown with optimum performance balance between flow rate, pressure drop and efficiency,
- Minimal control & instrumentation required and integrate with solids cleaning and disposal systems.
Solids Removal
by Our Affiliate PT Proteknik Indonesia

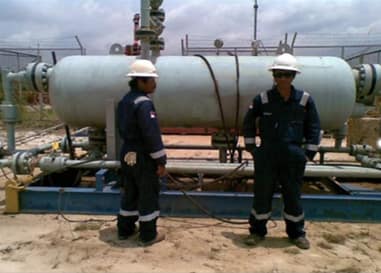

SAND SEPARATOR
- 36” x 10ft S/S Horizontal Sand Separator
- 2” CHOKE MANIFOLD – 5,000 PSI MAWP
- 2” 602 / 206 Interconnecting PIPEWORK PACKAGE
- Design Pressure 5,250 psig MAWP
- Operating Pressure 3,500 psi
- Gas Flow Rate Maximum 25 mmscfd
- Liquid Flow Rate 2,500 bbl/day
- With internal deflector and weir
- 1 minute retention time
- Safety Relief Valve
- Design Code ASME VIII Div. 1 and U stamp
Solids Removal
by Our Affiliate PT Proteknik Indonesia

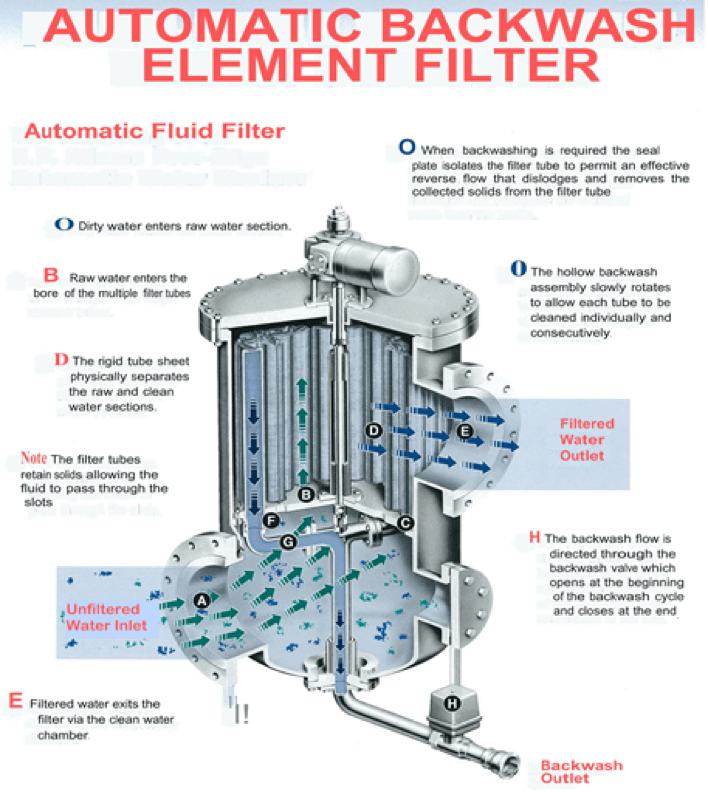

AUTO BACKWASH
Field-proven system with a unique ability to provide optimal and highly stabilized separation performance, regardless of the incoming fluid stability, pressure, sand/solid/particulate size, or concentration.
It is capable of providing outstanding separation efficiencies reliably, safely under real-field conditions, and performs where other purely fluid energy-based cyclonic systems, by the laws of physics, cannot sustain their performance.
- Multiple liner system offer greater flexibility,
- Cyclone liners can easily be replaced to accommodate for lower flows,
- High efficiency design and online turndown with optimum performance balance between flow rate, pressure drop and efficiency,
- Minimal control & instrumentation required and integrate with solids cleaning and disposal systems.

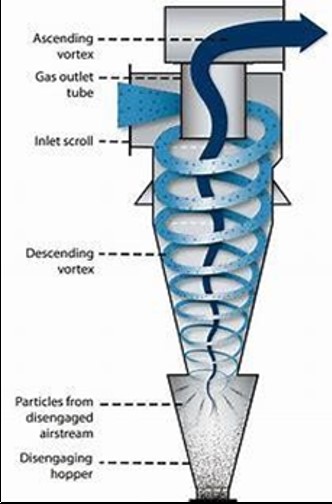

Produced-Water Handling
by Our Affiliate PT Proteknik Indonesia

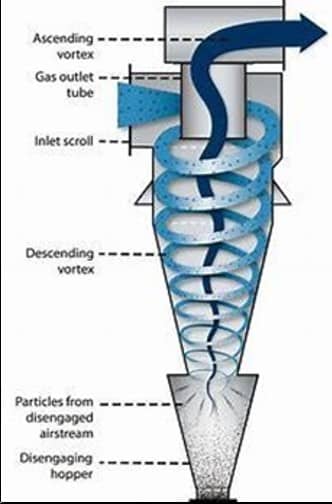

DEOILERS
- Multiple liner hydro cyclone systems offer greater flexibility,
- Cyclone liners can be easily replaced to accommodate varying flow ranges,
- Low maintenance and running cost, with no moving parts,
- High efficiency design and online turndown with optimum performance balance between flow rate, pressure drop and efficiency,
- All of our equipment is modular in design, which allows for easy integration with all of our other system component
Produced-Water Handling
by Our Affiliate PT Proteknik Indonesia

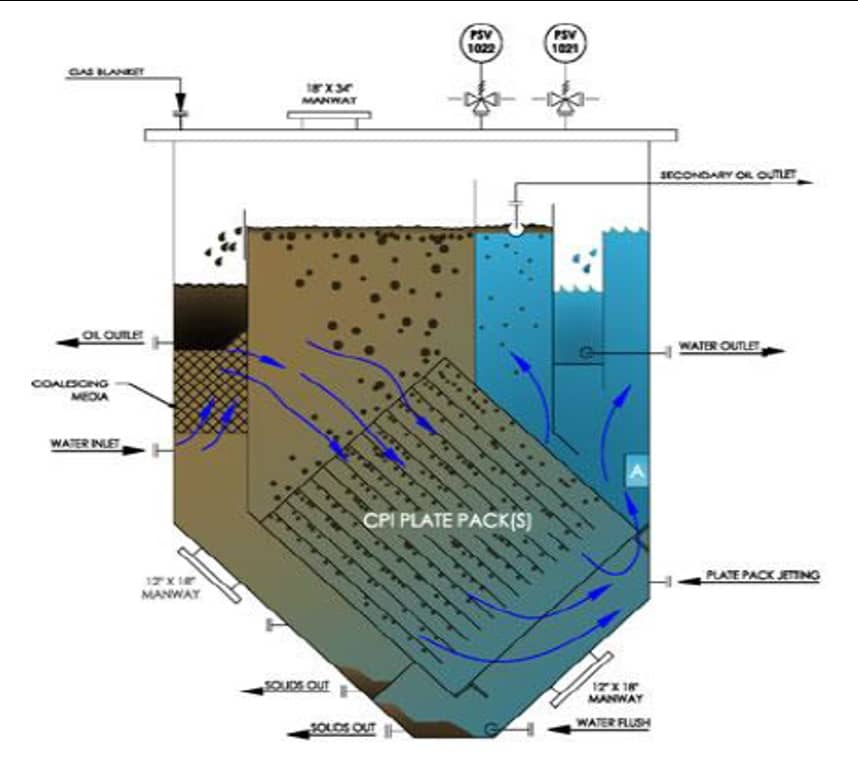

CORRUGATED PLATE INTERCEPTOR
Units are suited to the following applications:
- Where water is collected from multiple, low pressure sources,
- Handles oil/solids slugs & intermittent flows,
- Retention time typically +10 minutes,
- Settles larger oil droplets and coarse solids,
- Mostly supplied with a pressurized vessel upstream, to contain and control all gas and liquid emissions,
- Produced-water handling train where multiple stages are required to ensure reliable and effective produced-water treatment.
